48V LiFePO4 Battery

Q: Which installation type should I choose?

Wall-mounted suits garages and utility rooms with limited floor area; rack-mounted fits standard 19-inch equipment racks; floor-standing and stackable modules are best when you plan to expand capacity over time.

Q: Is 48V compatible with my hybrid inverter?

Most modern hybrid inverters (Deye, Solis, Growatt, GoodWe, Victron and similar) use 48V battery banks. Compatibility is confirmed over CAN or RS485, so we need your inverter model before shipment.

Q: How much energy does one 48V 100Ah module store?

About 5.12kWh nominal. With a recommended depth of discharge below 80%, plan on roughly 4kWh of usable energy per module, and stack modules to reach 10kWh, 15kWh or more.

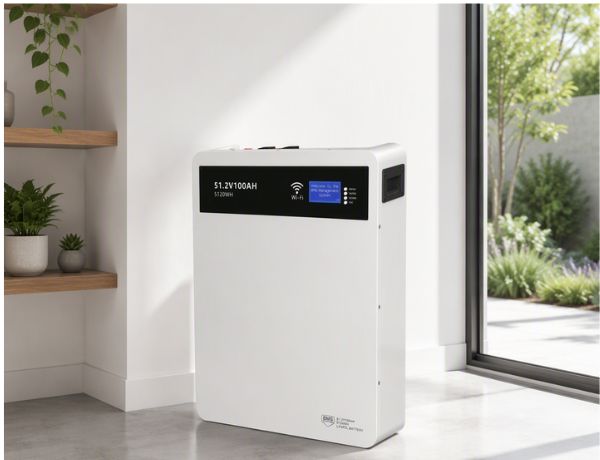

48V 100Ah LiFePO4 battery pack for home energy storage

48V · LiFePO4

A 48V LiFePO4 battery designed for home energy storage and solar energy storage systems, combining long cycle life with stable performance and flexible installation.

Highlights

48V LiFePO4
Home & Solar Storage
Discharging Temperature: -20°C ~ 55°C
Integrated BMS
Wall-Mounted / Rack-Mounted / Floor-Standing / Stackable

Technical certification:

CECB

Inquiry Now → Datasheet Solution

Wide Discharging Temperature Range

The battery system operates efficiently within a temperature range of -20°C to 55°C, so it keeps working through cold nights and hot rooftop enclosures.

-20°C55°C

A-Grade LiFePO4

A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6,000 cycles at 80% depth of discharge.

Specs of 48V 100Ah LiFePO4 Battery

Specification

Product Name	48V 100Ah LiFePO4 Battery
Product Type	Lithium Iron Phosphate Battery
Battery Chemistry	LiFePO4
Nominal Voltage	48V
Nominal Capacity	100Ah (typical)
Cycle Life	Up to 6,000+ cycles (typical)
BMS	Integrated Battery Management System (Brand: JBD / JK / DALY)
Charging Temperature	0°C ~ 55°C
Discharging Temperature	-20°C ~ 55°C
Recommended DOD	<80%
Application	Backup Power, Solar, Low-Voltage Applications
Customization	Available upon request
Warranty	5 Years
Installation Type	Wall-Mounted / Floor-Standing / Rack-Mounted / Stackable

Related Guides

Battery Basics

LiFePO4 Battery Cycle Life: What 6,000 Cycles Really Means

How cycle life is measured, what actually shortens it, and how to translate a cycle rating into years of service.

Read guide System Design

12V vs 24V vs 48V Battery: Which Voltage Do You Need?

How system voltage affects current, cable size, losses, inverter choice and safety — with a selection table by application.

Read guide Battery Basics

What Is a BMS? Battery Management System Explained

What the BMS protects against, how cell balancing works, and why the BMS brand matters more than most buyers realise.

Read guide

FAQ

Questions About the 48V LiFePO4 Battery

Which installation type should I choose?

Wall-mounted suits garages and utility rooms with limited floor area; rack-mounted fits standard 19-inch equipment racks; floor-standing and stackable modules are best when you plan to expand capacity over time.

Is 48V compatible with my hybrid inverter?

Most modern hybrid inverters (Deye, Solis, Growatt, GoodWe, Victron and similar) use 48V battery banks. Compatibility is confirmed over CAN or RS485, so we need your inverter model before shipment.

How much energy does one 48V 100Ah module store?

About 5.12kWh nominal. With a recommended depth of discharge below 80%, plan on roughly 4kWh of usable energy per module, and stack modules to reach 10kWh, 15kWh or more.
