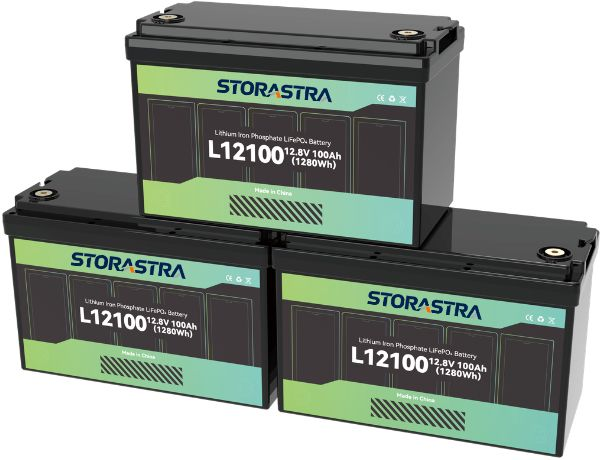

12V 100Ah LiFePO4 Battery

Q: Can a 12V LiFePO4 battery directly replace my lead-acid battery?

In most 12V systems, yes. The 12V 100Ah LiFePO4 battery is built as a drop-in replacement with a similar footprint and terminal layout, so it fits standard battery boxes. You should confirm that your charger or solar controller supports a lithium charging profile.

Q: What charger do I need for a 12V LiFePO4 battery?

Use a charger or MPPT solar controller with a LiFePO4 / lithium profile (14.2V–14.6V absorption, no equalisation mode). Many modern chargers have a selectable lithium mode; older lead-acid-only chargers with a desulphation pulse should be replaced.

Q: How many 12V 100Ah batteries do I need for home backup?

Each 12V 100Ah battery stores about 1.28kWh. For a 5kWh usable backup bank you need roughly four units in parallel, or you can move to a single 48V pack, which is the usual choice for whole-home systems.

12V · LiFePO4

A drop-in lithium replacement battery that delivers longer cycle life and higher usable capacity than a comparable lead-acid battery, without changing your existing 12V system layout.

Highlights

12V / 100Ah
LFP Battery
Discharging Temperature: -20°C ~ 55°C
Lead-acid replacement ready

Technical certification:

CECB

Inquiry Now → Datasheet Solution

Wide Discharging Temperature Range

The battery system operates efficiently within a temperature range of -20°C to 55°C, so it keeps working through cold nights and hot rooftop enclosures.

-20°C55°C

A-Grade LiFePO4

A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6,000 cycles at 80% depth of discharge.

Specs of 12V 100Ah LiFePO4 Battery

Specification

Product Name	12V 100Ah LiFePO4 Battery
Product Type	Lithium Iron Phosphate Battery
Battery Chemistry	LiFePO4
Nominal Voltage	12V
Nominal Capacity	100Ah (typical)
Cycle Life	Up to 6,000+ cycles (typical)
BMS	Integrated Battery Management System (Brand: JBD / JK / DALY)
Charging Temperature	0°C ~ 55°C
Discharging Temperature	-20°C ~ 55°C
Recommended DOD	<80%
Application	Backup Power, Solar, Low-Voltage Applications
Customization	Available upon request
Warranty	5 Years
Dimension (LWH)	330mm * 173mm * 216mm
Net Weight	10kg
Packing Dimension (LWH)	347mm * 192mm * 265mm
Gross Weight	10.3kg

Related Guides

Battery Basics

LiFePO4 vs Lead-Acid Battery: The Complete 2026 Comparison

Cycle life, usable capacity, weight, safety and total cost of ownership compared side by side — with the numbers that actually decide the purchase.

Read guide Compliance

LiFePO4 Battery Safety & Certifications: CE, CB, UN38.3, IEC 62619

What each battery certificate actually covers, which ones you need by market, and how to verify a certificate is genuine.

Read guide Home Storage

How to Size a Home Energy Storage System (Step-by-Step)

A practical four-step method using your electricity bill and load list to work out kWh capacity, inverter power and backup runtime.

Read guide

FAQ

Questions About the 12V LiFePO4 Battery

Can a 12V LiFePO4 battery directly replace my lead-acid battery?

In most 12V systems, yes. The 12V 100Ah LiFePO4 battery is built as a drop-in replacement with a similar footprint and terminal layout, so it fits standard battery boxes. You should confirm that your charger or solar controller supports a lithium charging profile.

What charger do I need for a 12V LiFePO4 battery?

Use a charger or MPPT solar controller with a LiFePO4 / lithium profile (14.2V–14.6V absorption, no equalisation mode). Many modern chargers have a selectable lithium mode; older lead-acid-only chargers with a desulphation pulse should be replaced.

How many 12V 100Ah batteries do I need for home backup?

Each 12V 100Ah battery stores about 1.28kWh. For a 5kWh usable backup bank you need roughly four units in parallel, or you can move to a single 48V pack, which is the usual choice for whole-home systems.
