Golf Cart LiFePO4 Battery | 48V/72V Lithium

48V/72V · LiFePO4

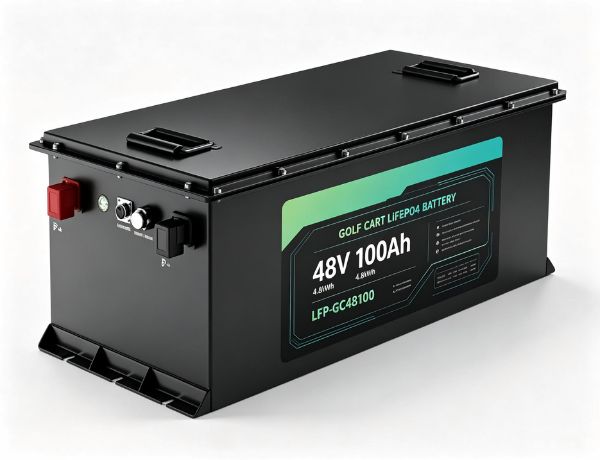

48V/72V Lithium Golf Cart Battery

A high-performance LiFePO4 battery designed for golf carts and low-speed electric vehicles, delivering longer runtime, higher efficiency and far less maintenance than lead-acid packs.

Highlights

48V/72V LiFePO4
Golf Cart & LSEV
Longer runtime
Low maintenance

Technical certification:

CECB

Inquiry Now → Datasheet Solution

Wide Discharging Temperature Range

The battery system operates efficiently within a temperature range of -20°C to 55°C, so it keeps working through cold nights and hot rooftop enclosures.

-20°C55°C

A-Grade LiFePO4

A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6,000 cycles at 80% depth of discharge.

Specs of Golf Cart LiFePO4 Battery

Specification

Battery Chemistry	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	72V
Rated Capacity	150Ah
Nominal Energy	10.8 kWh
Cycle Life	6,000+ cycles
IP Rating	IP65 / IP67
Communication	CAN / RS485 / Bluetooth
BMS	Intelligent Battery Management System
Dimensions (L×W×H)	825mm * 409mm * 241mm
Weight	Approx. 95kg
Warranty	5 Years
Customization	Available upon request

Related Guides

Golf Cart

Golf Cart Battery Lithium Upgrade Guide (48V & 72V)

What to check before converting a golf cart to LiFePO4: fit, charger, controller, wiring, BMS and the real-world payback for fleets.

Read guide Battery Basics

LiFePO4 vs Lead-Acid Battery: The Complete 2026 Comparison

Cycle life, usable capacity, weight, safety and total cost of ownership compared side by side — with the numbers that actually decide the purchase.

Read guide Home Storage

How to Size a Home Energy Storage System (Step-by-Step)

A practical four-step method using your electricity bill and load list to work out kWh capacity, inverter power and backup runtime.

Read guide

FAQ

Questions About the Golf Cart Battery

Will a lithium golf cart battery fit my existing cart?

Most 48V and 72V carts (Club Car, EZ-GO, Yamaha and similar) can be converted. The pack measures 825 × 409 × 241mm and weighs about 95kg, considerably lighter than the lead-acid bank it replaces. Send us your cart model and battery tray dimensions and we will confirm the fit.

Do I need to change my golf cart charger?

Yes. Lead-acid chargers use a profile that is wrong for lithium. You need a LiFePO4 charger matched to the pack voltage. We supply matched chargers with the battery.

How much extra range does lithium give?

Because lithium holds its voltage under load and you can safely use far more of the rated capacity, most carts see noticeably longer runtime per charge compared with an aged lead-acid bank, plus no voltage sag on hills.
